Solar permit plan sets, PE-stamped in 24 hours.

Outsourced solar design for installers and EPCs nationwide. Permit-ready plan sets cost $250 flat under 20 kW, with structural PE stamps, shade reports and ESS battery layouts added as you need them — drawn to the code year your AHJ actually adopted.

Start a work order See what’s in a set
13 years· 50 states· 24h turnaround· Sealed calcs included

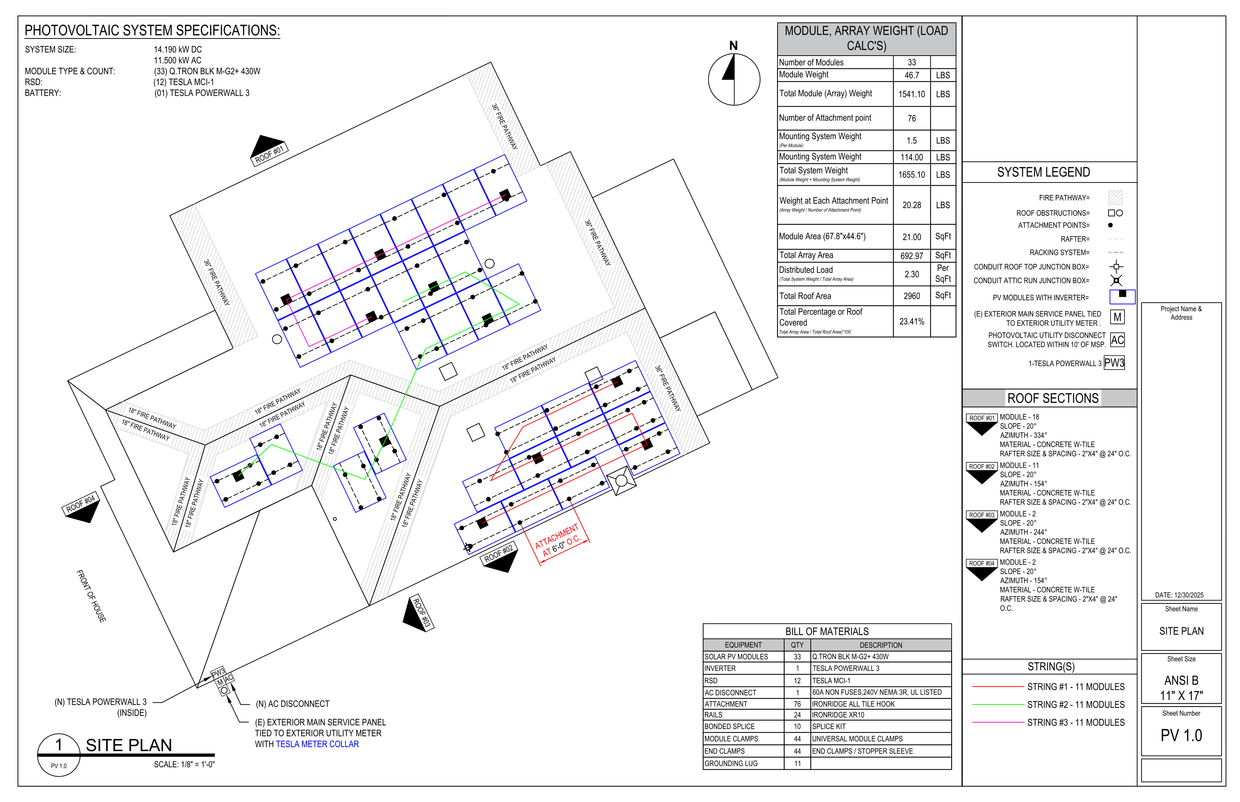

Permit plan set sheet PV 1.0: site plan for a 14.19 kW DC array of 33 modules across four roof planes, with all three strings colour-coded, 18-inch and 36-inch fire access pathways hatched, and the load calculation table, bill of materials and roof section schedule drawn on the same sheet.
Site plan & array layoutSheet shown
14.19 kW DCSystem
33 modulesArray
4 planesRoof

Sheet index

What’s in a standard set.

Everything the jurisdiction needs to review and approve, plus a specification sheet for every component — bundled in, never sent separately. Structural and battery sheets are add-ons, ordered on the jobs that need them. Commercial and utility-scale sets add civil, interconnection and equipment-pad sheets.

Sheet  ·  Description

  • PV 0.0Cover sheet, system specifications & governing codes
  • PV 1.0Site plan, fire pathways, string layout & load calculations
  • E 1.1Three-line diagram, conductor schedule & 120% busbar calculation
  • S 1.1Installation notes & attachment details
  • E 1.2Warning labels & placard schedule
  • SpecsEquipment specification sheets for every component
  • StructuralSealed framing plan & load calculations — +$200
  • ESSBattery layout, clearances & ventilation — add-on

Open the sheet explorer — magnify any region and see what a plan checker looks for →

Plan check

The six redlines that hold up most permits.

After thirteen years of submittals across every major AHJ, the rejection reasons repeat. Each one is checked before your set leaves our office — which is what you are really buying when you outsource solar design.

  • IFC 1205 / IRC R324

    Fire access pathways

    Ridge setbacks and access pathways missing, or dimensioned to a code year the jurisdiction never adopted.

    Every pathway and setback is dimensioned on PV 1.0 against the adopted code year.

  • NEC 690.12(D)

    Rapid shutdown labeling

    Placards absent, wrong wording, or shown without a mounting location.

    Full placard schedule with call-out locations on E 1.2.

  • NEC 705.12(B)(3)

    Busbar overload

    The 120% allowance applied to the wrong busbar rating, or supply-side taps shown without justification.

    Busbar and OCPD arithmetic is printed on E 1.1, never assumed.

  • Structural

    Unsealed calculations

    Loading asserted on the drawing with no stamped calculation package behind it.

    Sealed calcs for site-specific wind and snow ship inside every structural set.

  • Listings

    Missing equipment data

    Cut sheets omitted, or UL listing numbers absent from the equipment schedule.

    Cut sheets bundled with the set and listing numbers carried on E 1.1.

  • NFPA 855

    ESS clearances

    Battery separation, egress clearance and ventilation not shown on the drawing.

    Clearances dimensioned and ventilation noted on the battery sheet.
